VRS fixed to existing wall

Baxter Avenue

The existing retaining wall is 310 mm thick. For the proposed VRS post base, a minimum thickness of 450 mm is required.

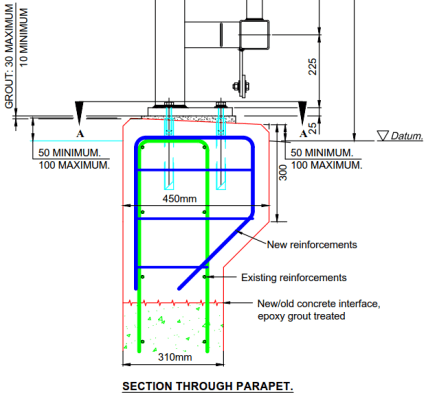

Proposed solution: Break off the top 600 mm retaining wall section to expose reinforcement, add in extra reinforcements for an enlarged plinth section:

vrs-base-reinforcement

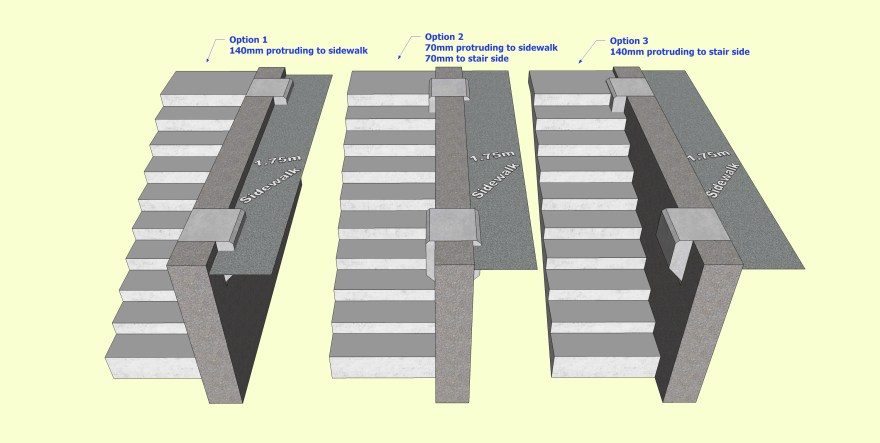

Options of Enlarged Plinth Base for VRS in Existing Wall (Baxter Avenue).jpg

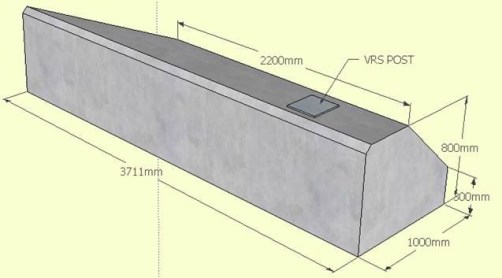

A concrete base with quite odd shape was designed for a VRS post:

foundation-for-vrs-post

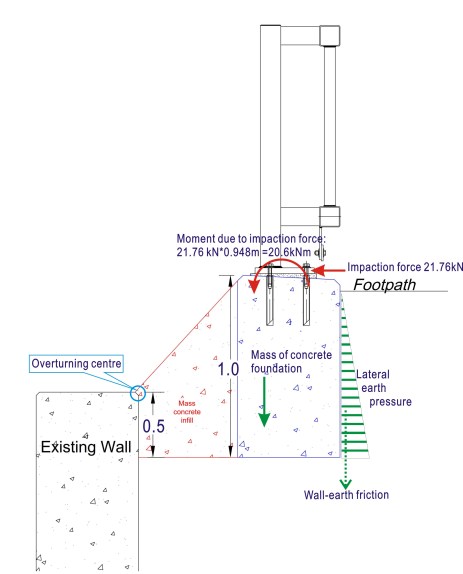

EQU check of the system under impaction forces in the case of a car collision was carried out:

Forces diagram (extra concrete foundation for VRS base).jpg
