Steel plinth fixed to a RC wall

Remedial measure of a retaining wall which was done 100 mm shorter

My original idea was to use a RHS column next to the wall, to support the half-overhanging beam above the RC wall:

rhs-next-to-a-rc-wall

The above idea of RHS column was difficult to implement due to collision with a stair ramp. I’ve come up with an alternative solution of fixing a steel plinth made from UKC to the wall corner:

ukc-fixed-to-a-rc-wall-1

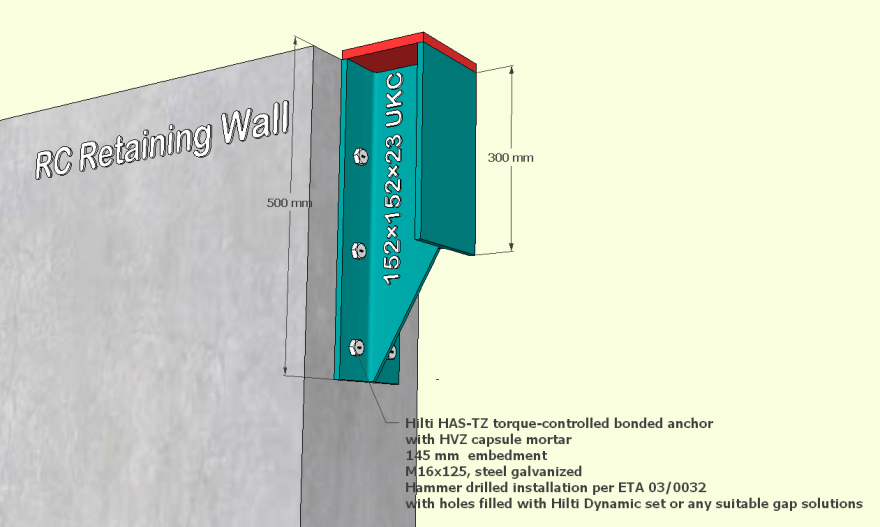

The UKC was chamfered to give more headroom and reduce collision risks:

ukc-fixed-to-a-rc-wall

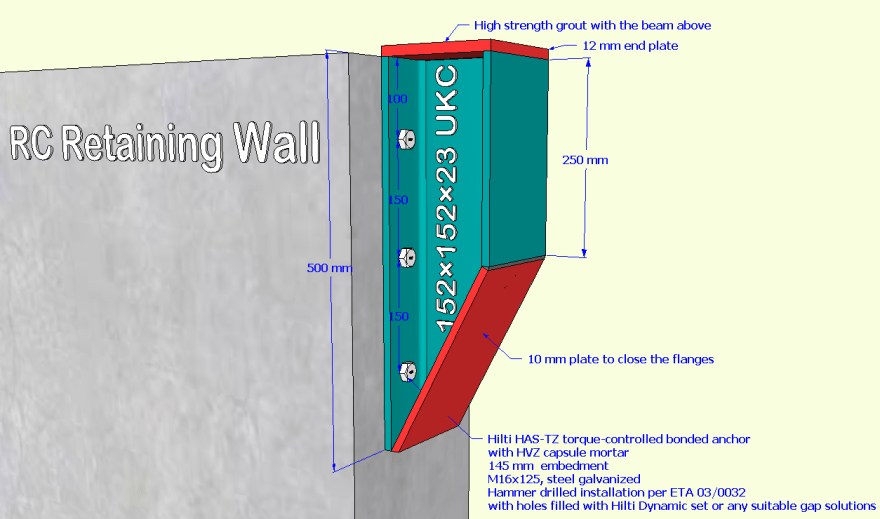

Final solution: the UKC flange was closed by a steel plate for better rigidity and appearance:

remedial-measure-of-a-100mm-shorter-wronly-done-rc-wall_2-gravesend-cycle-hub
